Welding Supports & Angle Modules

Master the 3rd Dimension of Fixturing

• Z-Axis Elevation & Cantilevers

• Framed Support Bases: Hollow-cast iron blocks designed to lift your workpiece 75mm or 100mm off the table, providing perfect ergonomic access for bottom-up welding.

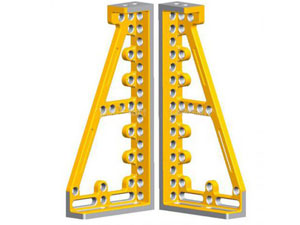

• Left/Right Support Angle Irons: Heavy-duty, asymmetrical extensions. Bolt them to the edge of your table to support massive overhanging flanges or pipes, transferring the load safely back into the table grid.

• Rigid Angular Connections

• Angled Connecting Blocks: The ultimate structural joint. Use these solid blocks to permanently lock two fixture elements (like U-blocks) together at specific, immovable angles.

• Angled Support Blocks: Solid wedge bases that provide a dedicated, unyielding foundation for repetitive angled parts.

• Zone 3: Dynamic Angle Adjustment

• Angle Adjustors / Apparatus: The ultimate problem-solver for custom fabrication. Featuring a robust rotating mechanism and precision locking slots, these modules allow you to set your datum plane to any non-standard angle (e.g., 37.5°, 60°) in seconds.

Z-Axis Elevation & Support Bases

Designed for vertical clearance and heavy-duty table extension.

Rigid Angle Connections

Solid blocks for creating immovable, specific-degree joints and bases.

Angle Adjustors

Fully adjustable apparatus for non-standard pipe joints and complex frames.

Engineering the Perfect Custom Setup

• The Overhanging Pipe: Bolt a Right Support Angle Iron to the edge of your table, and mount a V-Block on top of it. This creates a rock-solid, suspended cradle for a 3-meter pipe that extends far beyond your primary workspace.

• The Non-Standard Frame: Need to build an A-frame with a 65-degree peak? Lock two Angle Adjustors onto your table, set them both precisely to 65°, and drop your square tubing straight against them for immediate, flawless tacking.
